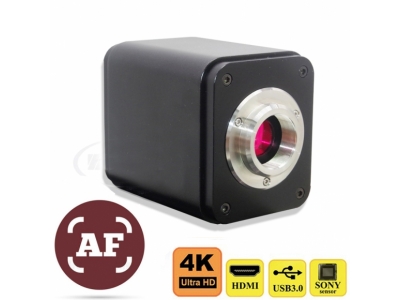

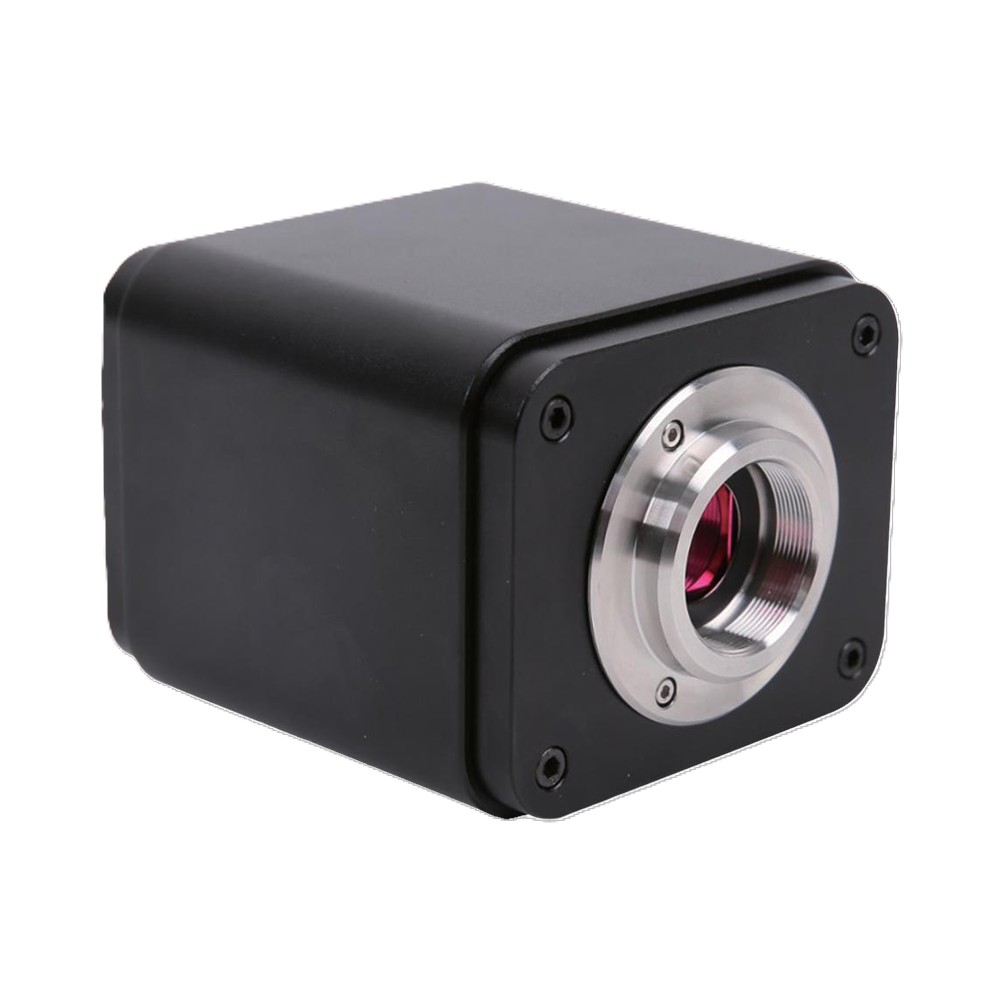

HK-X5FCAM4K8MPA pairs a Sony IMX678(C) sensor with 8MP, featuring built-in autofocus and depth stacking for microscopy imaging and automated inspection.
Sensor: Sony IMX678(C)
Resolution: 8MP

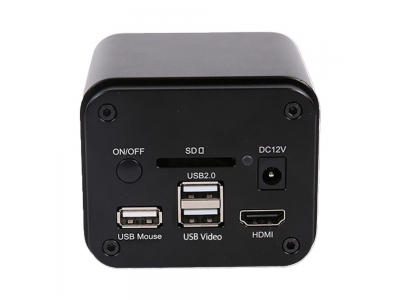

Output Interfaces: HDMI / Wi-Fi / USB
Frame Rate: 60 fps @ 3840×2160 Key Highlights Powered by the Sony IMX678(C) sensor to deliver 8MP high-fidelity imaging.
Supports HDMI / Wi-Fi / USB multi-interface output with HDMI up to 60 fps low latency Autofocus with depth stacking maintains generous depth of field even at high magnification
Embedded XCamView offers on-screen measurement, recording, and side-by-side comparison over HDMI SD card / USB storage enables immediate review of 8 MP photos
and 4K video on site XCamView / ToupView / ToupLite provide seamless cross-platform remote control.
X5FCAM4K8MPA Specifications General Information
Product Model:HK- X5FCAM4K8MPA

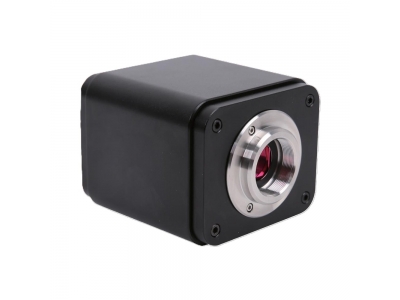

Product Series HDMI/Wi-Fi/USB Multi-Output C-Mount CMOS Autofocus Camera Autofocus Supported
Sensor Parameters Sensor Model Sony IMX678(C) Sensor Size 1/1.8" (7.68×4.32 mm) Pixel Size 2.0 µm × 2.0 µm
Maximum Resolution 8MP Shutter Type Rolling Shutter Color Type Color Output & Performance
Output Interfaces HDMI / Wi-Fi / USB Frame Rate 60 fps @ 3840×2160
Storage Support SD Card / USB Flash Drive Software Support XCamView / ToupView
Power Supply DC 12 V / 1 A
Physical & Environmental Dimensions — Weight —
Operating Temperature -10 °C ~ 50 °C Storage Temperature Operating Humidity Storage Humidity
Compatibility & Certifications Operating Systems Windows / Linux / macOS Certifications CE / FCC.
Standard Packing List:
A Camera box size: L 25.5 cm × W 17.0 cm × H 9.0 cm (1 pcs, 1.7 kg per box)
B X5FCAM4K8MPA camera ×1
C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12H-US), EU POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
D USB mouse
E HDMI 2.0 cable
F USB3.0 A male ↔ A male gold-plated data cable (1.5 m) Optional Accessories
G Voice control module
H SD card (16 GB+, Class 10)
I Adjustable eyepiece tube adapters Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
J Fixed eyepiece tube adapters Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model (C-mount) before choosing I or
J; engineers can help match the adapter.
K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
M USB drive N USB wireless network adapter (required for WiFi mode; appearance varies by model)
