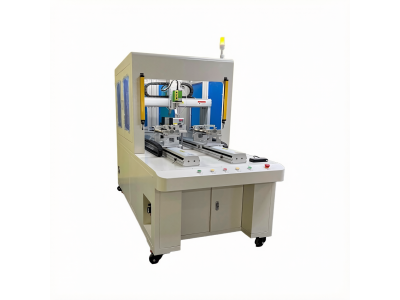

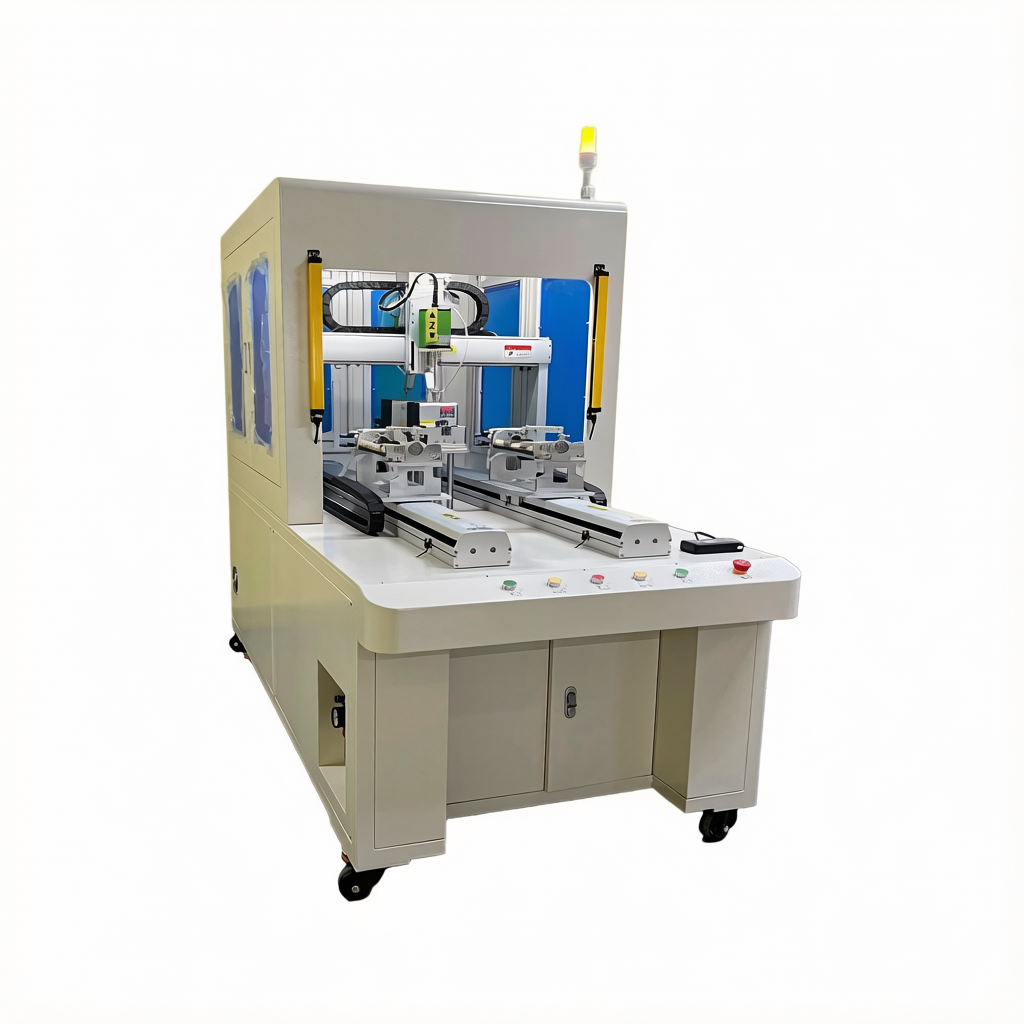

Industrial Automatic Screw Thread Insertion Machine for Production Line

The Auto  Screw thread Installation Machine is an advanced fastening solution engineered to automate the process of installing screw thread inserts into pre-tapped holes. By combining precision motion control with intelligent torque management, the machine guarantees reliable and repeatable insert installation, improving both production efficiency and product quality.

This system supports automatic feeding, positioning, and insertion of screw inserts, significantly reducing manual labor and minimizing installation errors. It is suitable for a wide range of materials including aluminum alloys, stainless steel, and cast metals.
With a user-friendly control interface, operators can easily set parameters such as insertion depth, rotation speed, and torque limits. The machine can be configured as a standalone unit or integrated into an automated production line.

MetInfo enterprise content manager system | MetInfo CMS
MetInfo enterprise content manager system | MetInfo CMS









Technical Specifications
(Custom configurations available upon request.)
Model
BBA-331YT
BBA-5441YT
BBA-6441YT
Voltage
AC 110/220V 50/60HZ
Air Source
0.4-0.6MPa
Conveying mode
Vibrating plate+direct vibrating track
Max moving speed
10~500mm/S
Repeat Positioning Accuracy
±0.05mm /axis
Stroke
300*300*100mm/500*400*400*100mm can be customized
Work efficiency
6S/pcs (include cutting thread tail), details depends on thread size
Programming File Capacity
12 groups, 20 points per group; can be customized
Control panel
PLC+HMI screen
Applicable screw
M4~M10
Screw thread height
6~20mm
External Dimensions(L*W*H)
65*127*156(CM)
85*127*156mm(CM)
100*127*156(CM)
Gross Weight
420KG
450KG
550KG
Application

Auto self-tapping Screw Installation Machine is widely used for thread reinforcement and repair in various industries:
* Automotive Industry: Engine blocks, cylinder heads, transmission housings
* Aerospace Industry: Aircraft structural components and aluminum parts
* Electronics Industry: Aluminum housings and precision CNC parts
* Machinery Manufacturing: Gearboxes, pump housings, and mechanical components

* Energy Sector: Wind turbine components and heavy equipment parts
