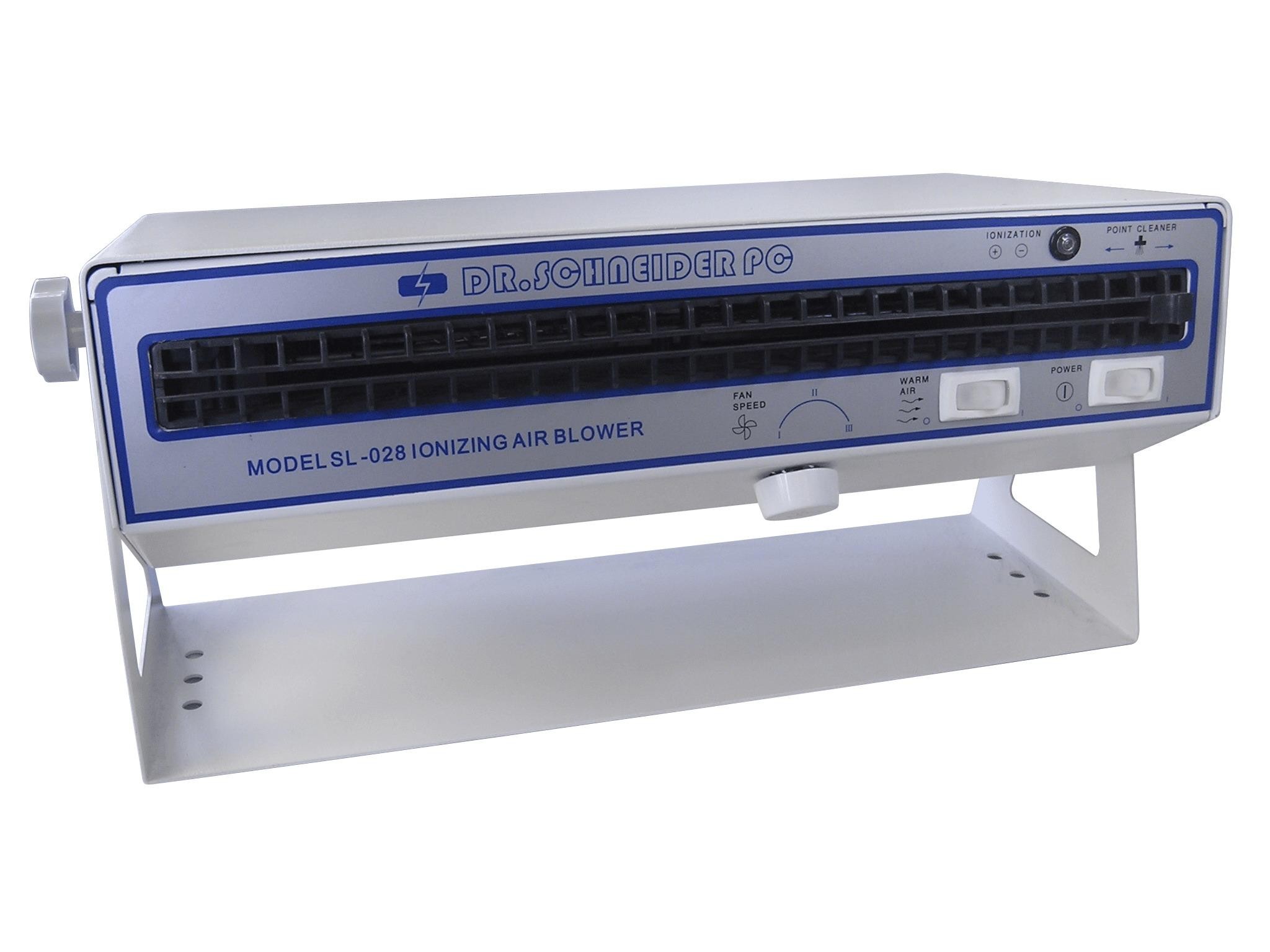

Horizontal Dr. Schneider Ionizingair Blower Static Eliminator SL-028
DR.SCHNEIDERPC SL-028 Horizontal Ionizing Air Blower is a member of the DR SCHNEIDER PC ionizing air blower family. The SL-028 blower is a wide area unit designed to provide total coverage for electrostatic problems.
Please read the complete instruction manual before operating the device. This unit is equipped with a 3-wires grounding plug and must be plugged into a 3-terminal grounded socket. Do not modifying plug or using an ungrounded power socket. If an extension cord is necessary, use only a 3-wire extension cord that provides grounding.
Do not insert objects through intake or outlet grille.
Do not operate unit inflammable or explosive atmospheres.
Internal repairs or servicing should be done by DR SCHNEIDER PC personnel.
Current Draw： 3.2A/1.6A
Air Volume output ： 70~120CFM
Operating Temperature： 32.F(0.C)--122.F(50.C)
Size ： 460mm(L)*225mm(W)*190mm(H)
Weight ： 7.5kg
Offset Voltage： ≤±10V
The DR.SCHNEIDER PC Ionizing blower should be located above work surface. There should be no cross flow of air between unit and work surface. Drafts from air conditioning and heating air outlets can affect performance of this unit.
Specification
| Input voltage | 110v/220v |
| Current input | 3.2A/1.6A |
| Air volume output | 70-120CFM |
| Working temperature | 0ºC-50ºC |
| Dimension | 460mm(L)*225mm(W)*190mm(H) |
| Weight | 7.5kg |
| Ion balance voltage | ±10V |
| Away from Ionizer | Center line |
| 300mm | 0.8sec |
| 600mm | 1.5sec |
| 900mm | 3.0sec |
