Specification:
|
Item Model
|

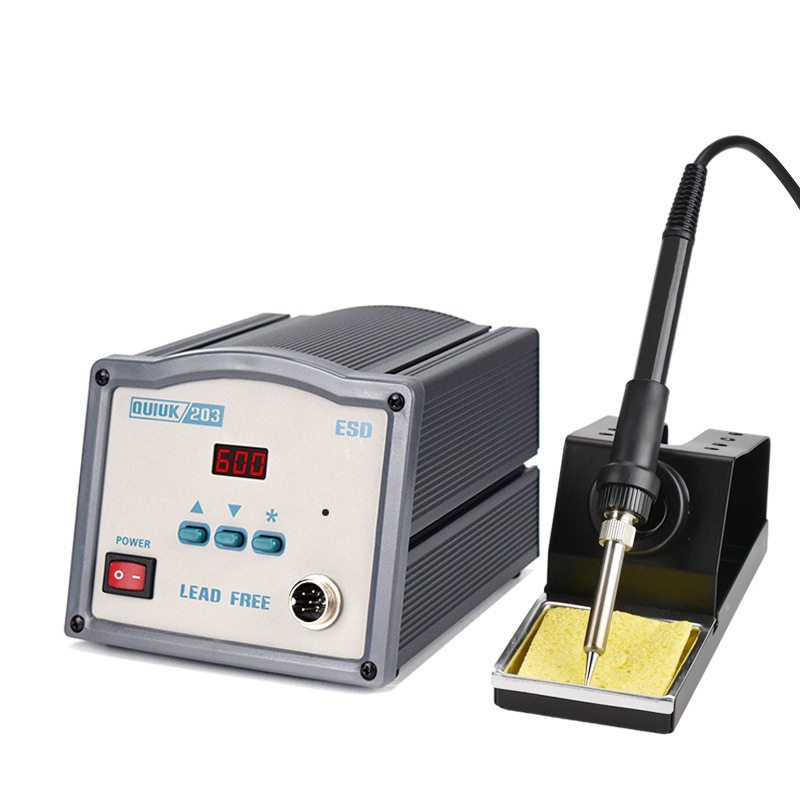

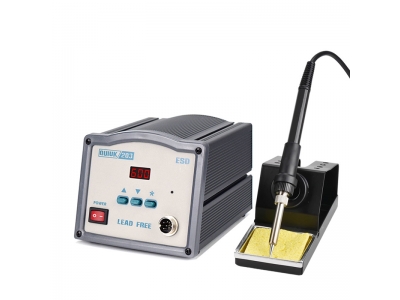

203H ESD Soldering station
|
|
Temperature range
|
50℃-600℃
|
|
Temperature stability
|
±2℃(stationary air, no load)
|
|
Input voltage/Frequency
|
220V/110V 50Hz/60Hz
|
|
Output voltage/Frequency
|
36V AC 400K Hz
|
|
Max power
|
90W
|
|
Temperature rising time (20℃-350℃)
|
25S
|
|
Temperature dropping
|
25℃
|
|
Heating mode
|
Intelligent
|
|
Heating theory
|
High frequency current
|
|
Tip to ground resistance
|
< 2Ω
|
|
Tip to ground potential
|
< 2mV
|
|
Auto sleeping
|
Yes
|
|
Temperature-lock mode
|
Password
|
|
Weight(no power cord)
|
About 3.25kg
|

Performance
1. Separate design between heater & soldering tip.
2. Astonished heating speed,Only within 25sec to reach 350°C from room temperature.
3. Perfect intelligent soldering effects, sufficient power varies with the sizes of soldering point.
4. Extraodinary heat recovery,Incredible temperature compensation speed can solve temperature
problems occurred during the course of lead-free soldering.
5.It is a must,maybe a better tool for lead-free soldering and lower-temperature soldering.
6. Extension of life of soldering tips,Relative lower temperature will largely prolong the life of soldering tips.
Practical Function
1. Auto sleeping, energy-efficient
Temperature will lower to 200sec when not in use over 20 minutes. When work is needed again, Temperature Will reach up to set one rapidly. If station not resume more than 40 minutes after it comes to sleep, the power Supply will be shut off automatically, and window display will not show anything.
2. Temperature locking by password Stable soldering temperature ensures high soldering effects. Temperature can be locked by password to Prevent inadvertent changes.
3. Separate design between heater and soldering tips Separate design of heater and tip makes the replacement easy so as to save expenditure and cos
